| 型號 | 功率 | 馬力 | 排氣量 | 壓力 | 外形尺寸 | 重量 | 出口尺寸 |
| SCR30PM-7 | 22 | 30 | 0.89-3.7 | 7 | 1200*800*1100 | 450 | RC1 |
| SCR30PM-8 | 0.86-3.6 | 8 | |||||
| SCR30PM-10 | 0.84-3.5 | 10 | |||||
| SCR40PM-7 | 30 | 40 | 1.25-5.2 | 7 | 1200*800*1100 | 510 | RC1 |
| SCR40PM-8 | 1.2-5 | 8 | |||||
| SCR50PM-7 | 37 | 50 | 1.56-6.5 | 7 | 1300*900*1270 | 680 | RC1 1/2 |
| SCR50PM-8 | 1.51-6.3 | 8 | |||||
| SCR50PM-10 | 1.39-5.8 | 10 | |||||

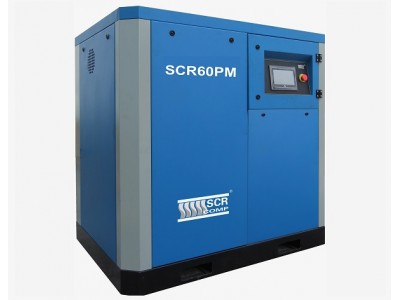

| SCR60PM-7 | 45 | 60 | 1.94-8.1 | 7 | 1300*950*1370 | 730 | RC1 1/2 |
| SCR60PM-8 | 1.92-8 | 8 | |||||
| SCR60PM-10 | 1.7-7.1 | 10 | |||||
| SCR75PM-7 | 55 | 75 | 2.5-10.4 | 7 | 1800*1200*1550 | 1230 | RC2 |
| SCR75PM-8 | 2.42-10.1 | 8 | |||||
| SCR75PM-10 | 2.04-8.5 | 10 | |||||
| SCR100PM-7 | 75 | 100 | 3.26-13.6 | 7 | 1800*1200*1550 | 1280 | RC2 |
| SCR100PM-8 | 3.19-13.3 | 8 | |||||
| SCR100PM-10 | 2.83-11.8 | 10 | |||||
| SCR125PM-7 | 90 | 125 | 3.91-16.5 | 7 | 2900*1620*1692 | 2850 | DN65 |
| SCR125PM-8 | 3.84-16 | 8 | |||||
| SCR125PM-10 | 3.48-14.5 | 10 | |||||
| SCR125PM-12.5 | 3.07-12.8 | 12.5 | |||||
| SCR150PM-7 | 110 | 150 | 4.87-20.3 | 7 | 2700*1750*1850 | 2900 | DN65 |
| SCR150PM-8 | 4.8-20 | 8 | |||||
| SCR150PM-10 | 4.2-17.5 | 10 | |||||
| SCR150PM-12.5 | 3.74-15.6 | 12.5 | |||||
| SCR180PM-7 | 132 | 180 | 5.88-24.5 | 7 | 3600 | DN65 | |
| SCR180PM-8 | 5.76-24 | 8 | |||||
| SCR180PM-10 | 5.04-21 | 10 | |||||
| SCR180PM-12.5 | 4.32-18 | 12.5 | |||||
>排氣量是在額定排氣壓力下測得，根據國際GB3853測試（等同于ISO1217附錄C）。
>標準電壓380V 50HZ 異電壓、異頻率電源配置，請?jiān)谠儍r(jià)時說明。
>推薦最佳使用氣量為額定氣量的60%~100%
>高溫、高濕、高寒、高粉塵等惡劣工況下使用的機器為非標機型。
>外觀、規格如改進，廠家擁有最終解釋權。
>125PM-180PM為風冷電機。
|
|
|
|
|
|
|
|
